OHR-BIT

OHR-BIT Series.

Say hello to the our newest LED series, OHR-BIT. Inspired by the best. Transformed to be above the rest. Stand out in any space.

OHR-BIT P1.2

  • Application: Indoor

  • LED Type: SMD2210

  • Cabinet Resolution: 480x270

  • Max Brightness (CD/m²): 550 nits

  • Contrast Ratio: 6500:1

  • Color Processing Depth: 13bit - 16bit

  • Refresh Rate (Hz): 3840Hz

  • Drive Mode: 1/30

  • Viewing Angle (H/V°): 170°/170°

  • Cabinet Size: 610mm x 343mm x 31mm

  • Cabinet Material: Magnalium

  • Cabinet Weight: 4.8Kg / 10.5lbs

  • Max Power (W): 82

OHR-BIT P1.5

  • Application: Indoor

  • LED Type: SMD1212

  • Cabinet Resolution: 384x216

  • Max Brightness (CD/m²): 550 nits

  • Contrast Ratio: 6500:1

  • Color Processing Depth: 13bit - 16bit

  • Refresh Rate (Hz): 3840Hz

  • Drive Mode: 1/27

  • Viewing Angle (H/V°): 170°/170°

  • Cabinet Size: 610mm x 343mm x 31mm

  • Cabinet Material: Magnalium

  • Cabinet Weight: 4.8Kg / 10.5lbs

  • Max Power (W): 68

OHR-BIT P1.9

  • Application: Indoor

  • LED Type: SMD1515

  • Cabinet Resolution: 320x180

  • Max Brightness (CD/m²): 550 nits

  • Contrast Ratio: 6500:1

  • Color Processing Depth: 13bit - 16bit

  • Refresh Rate (Hz): 3840Hz

  • Drive Mode: 1/30

  • Viewing Angle (H/V°): 170°/170°

  • Cabinet Size: 610mm x 343mm x 31mm

  • Cabinet Material: Magnalium

  • Cabinet Weight: 4.8Kg / 10.5lbs

  • Max Power (W): 62

OHR-Bit Series panels are given a standard 3 year warranty from date of delivery.

Aspect Ratio

16:9 Aspect Ratio

Each panel is designed in a 16:9 aspect ration to easily achieve standard resolution.

3-1 Tech

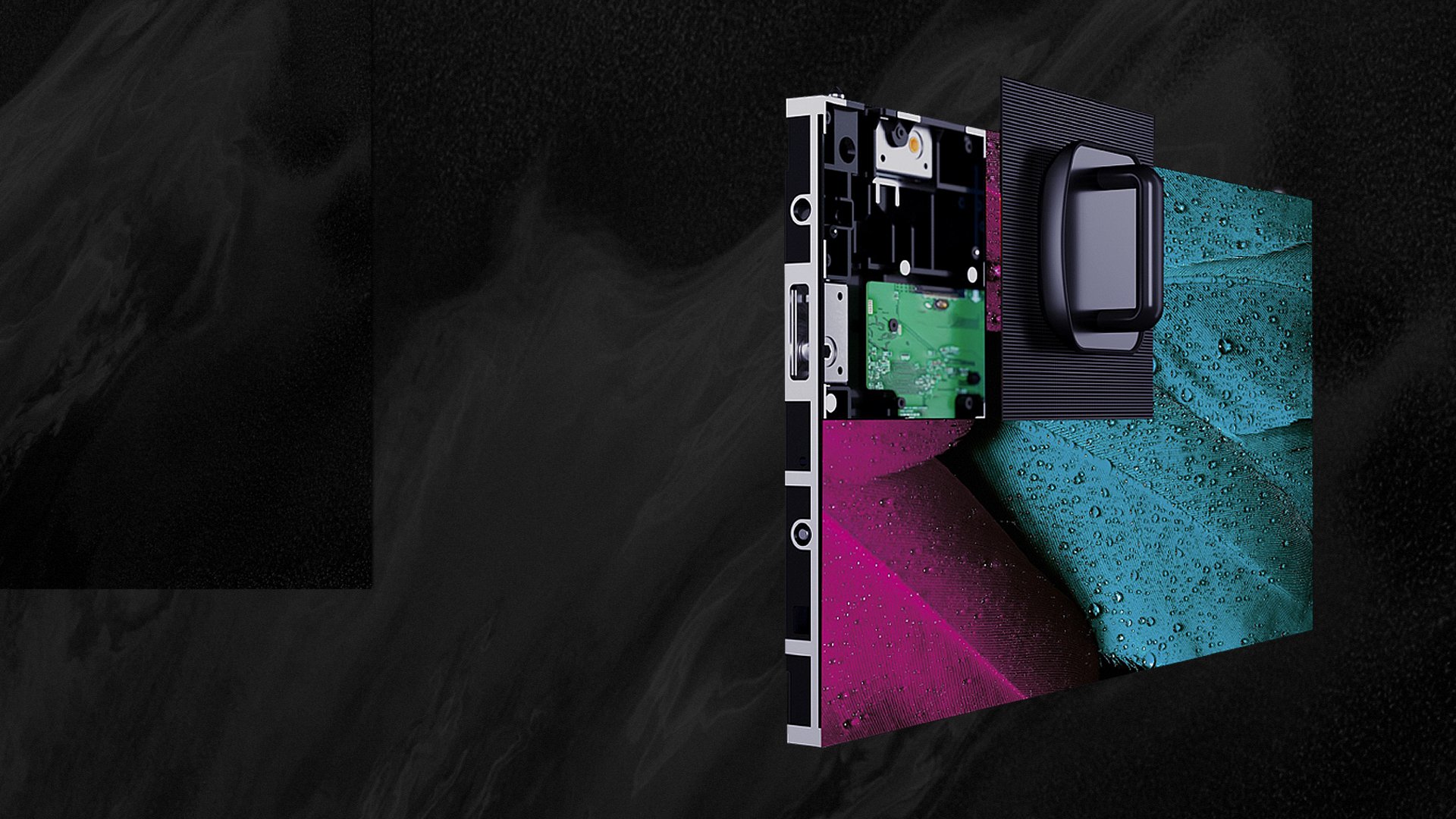

Highly integrated 3-1 tech

Power supply, receiving card and hub board are integrated onto one board without wiring, minimizing components and optimizing stability.

BEFORE

AFTER

Pixels

Pixel-to-Pixel Calibration

OHR LED can offer calibration services for consistent image quality. Furthermore, the display module has its own calibration storage function, insuring image quality during future maintenance or replacement.

Convenient

Advantageous

Full front-access saving time during installation and enabling hassle free maintenance.
